Escalators
Green Elevatorescalators have various advantages such as durability,
safety and confidence.
Detection of frequency at low speed
When there is no one using the escalator for some time, it can save up to 60% of energy through slow operation.
Detection of automatic operation frequency
When there is no one using the escalator after low-speed operation, it stops, and then it operates again once the entry sensor detects any motion of a user so that it can save up to 70% of energy.
Intelligent converter system
Control system automatically adjusts the detection speed by sensing escalator transport situation that leads to the reduction of energy consumption giving the comfort to users. It can save up to 80% of energy.

ESCALATOR DESIGN

1. INDOOR TYPE
Step DIE CASTING ALUMINUM
Baseboard TEMPERED GLASS
Deck STS HAIRLINE
Floor Plate STAINLESS STEEL
Multi Post STS

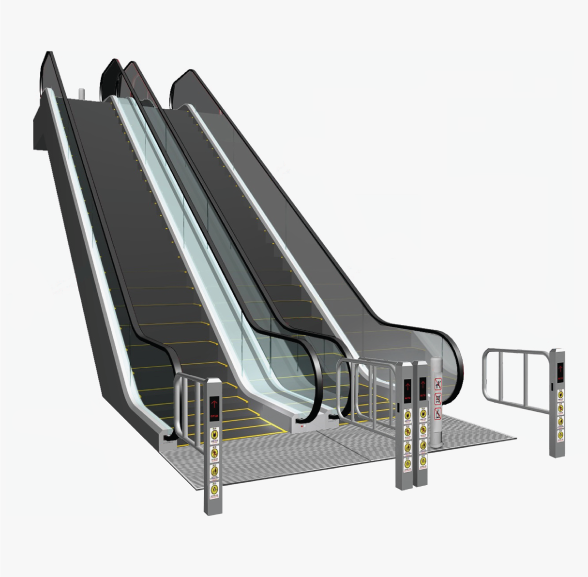

INDOOR TYPE

2. OUTDOOR TYPE
Step DIE CASTING ALUMINUM
Baseboard STS HAIRLINE
Deck STS HAIRLINE
Floor Plate STAINLESS STEEL
Multi Post STS

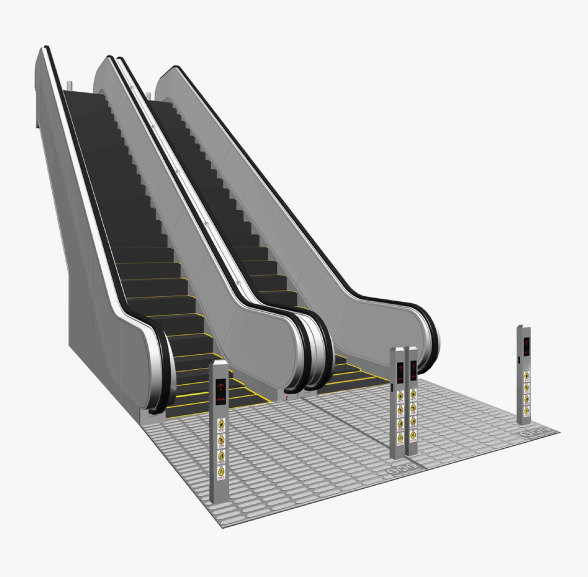

OUTDOOR TYPE

OPTION

Handrail Color

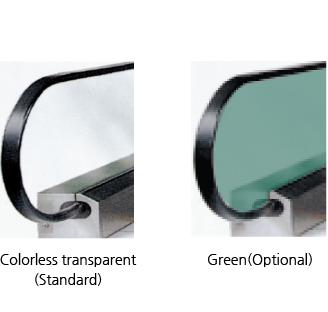

Baseboard Color

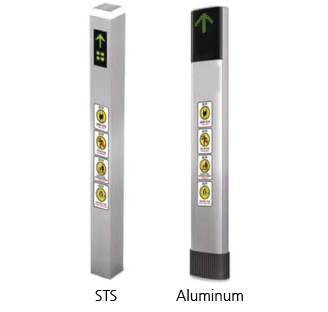

Multi Post

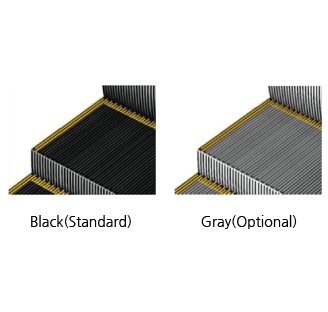

Step Color

Escalators

Motor capacity
KW 		Traveling height
Step width 1000 		KW Traveling height
Step width 1000 		KW Traveling height
Step width 1000 		KW
1000-3300 5.5 1000-3500 5.5 1000-3700 5.5
3400-4500 7.5 3600-4700 7.5 3800-4900 7.5
4600-4900 8 4800-5100 8 5000-5200 8
5000-5900 11 5200-5900 11 5300-5900 11
Step width A B C D E F
1000 1000 1158 1238 1600 1660 2310
800 800 958 1038 1400 1460 2110
600 600 758 838 1200 1260 1910
Model Traveling height Net weight KN Bearing capacity Transporation dimension
R1 KN R2 KN h l
FML(600)-30
(3600Person/h)
Speed : 0.5m/s 		3000 57 46 41 2750 10900
3500 60 49 44 2780 11890
4000 64 52 47 2810 12880
4500 68 56 50 2830 13870
5000 71 59 53 2840 14860
5500 75 62 56 2860 15860
6000 79 65 59 2870 16860
FML(800)-30
(4800Person/h)
Speed : 0.5m/s 		3000 59 52 47 2750 10900
3500 63 56 50 2780 11890
4000 67 60 54 2810 12880
4500 71 64 57 2830 13870
5000 74 68 60 2840 14860
5500 82 74 66 2860 15860
6000 86 78 69 2870 16860
FML(1000)-30
(6000Person/h)
Speed : 0.5m/s 		3000 63 59 53 2750 10900
3500 67 64 57 2780 11890
4000 71 68 61 2810 12880
4500 75 73 65 2830 13870
5000 83 79 71 2840 14860
5500 87 84 75 2860 15860
6000 92 88 79 2870 16860

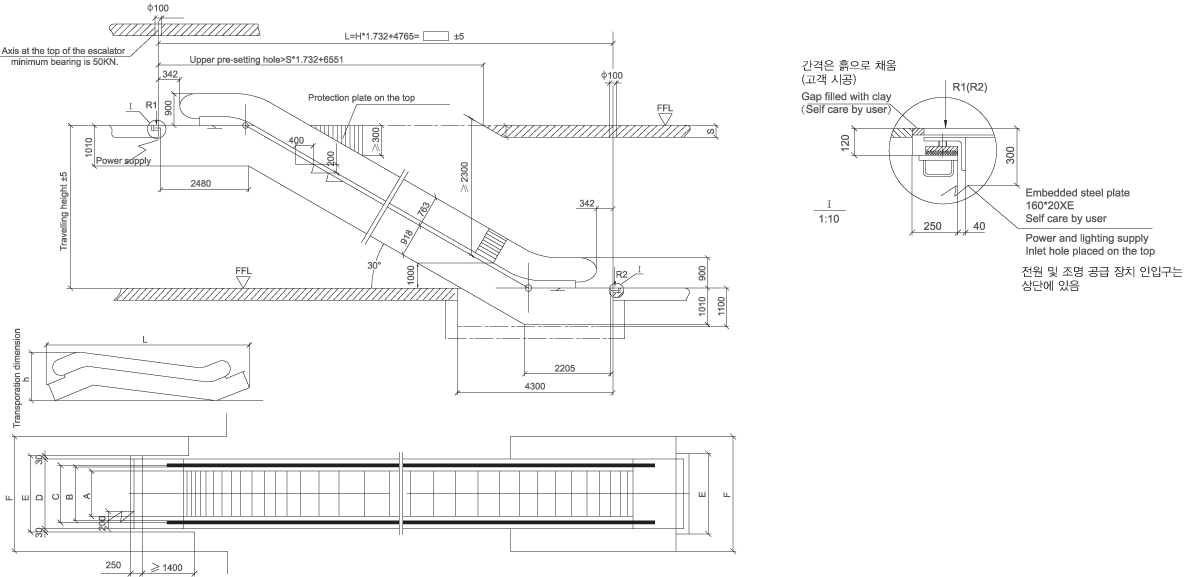

  • - When the escalator is installed in the 2-story or higher building, no feet. Layout drawing shall fit between upper and lower parts.
  • - Free up space near entries of escalators. Width > 1238 mm The distance between the end of handrail belt and the front barrier shall be at least 2500 mm.
  • - The distance between the handrail belt and the barrier shall be at least 500mm.
  • - Motor: AC380V, 50Hz. Please refer to the table.
  • - Less than 4Ω of ground resistance shall be supplied.
  • - Three-phase 5 wires shall be supplied for main power switch.
  • - Every measurement unit is in mm.
